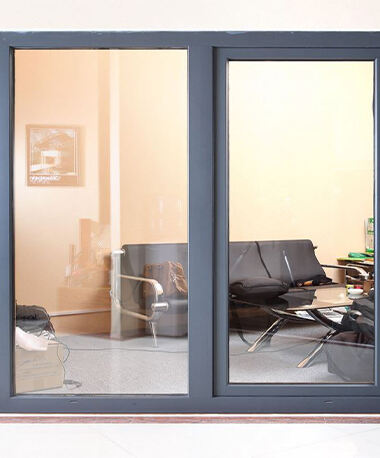

Greensee GAW68TL Ordinary Aluminum Sliding Window
-
Model: GAW68TL
-
Opening Style: Fixed, Sliding
-
Profile Thickness: 2.0mm
-
Color: Customized
-
Glass: Double glazed
-
Thermal Insulation: 2.6W/m2K
-
Air Tightness: 1.5m3 (m2*h)
-
Wind Tightness: 2.0Kpa
-
Water Tightness: 350Pa
-
Standard: AS2047, NFRC, AAMA, CE, ISO
-
Warranty: 10 years
- Description
- Details
- Parameters
- Applications
- Cases
- Advantages
- Inquiry
Description
Details
Parameters
| Profile Thickness: | 1.4mm | Opening Style: | Fixed, Sliding |
| Color: | Outdoor Deep grey/coffee, Metal grey indoor, or customized | Water Tightness: | 350Pa |
| Glass: | 5mm Hollow tempered glass | Air Tightness: | 1.5m3 (m2*h) |
| Accessories: | Domestic brand hook lock, KIN LONG locking system | Wind Resistance: | 2.0Kpa |
| Screen: | Intergrated sliding screen | Heat Insulation: | 3.5W/m2K |
| Upgradeable Option： | |||
| Glass selection refers to the glass configuration table or software system options. | |||
| System without screen optional | |||
| Note: | |||
| 1. Sash Dimension W: 450-1000mm, H: 550-1800mm | |||
| 2. Glass weight should not exceed 80kg | |||

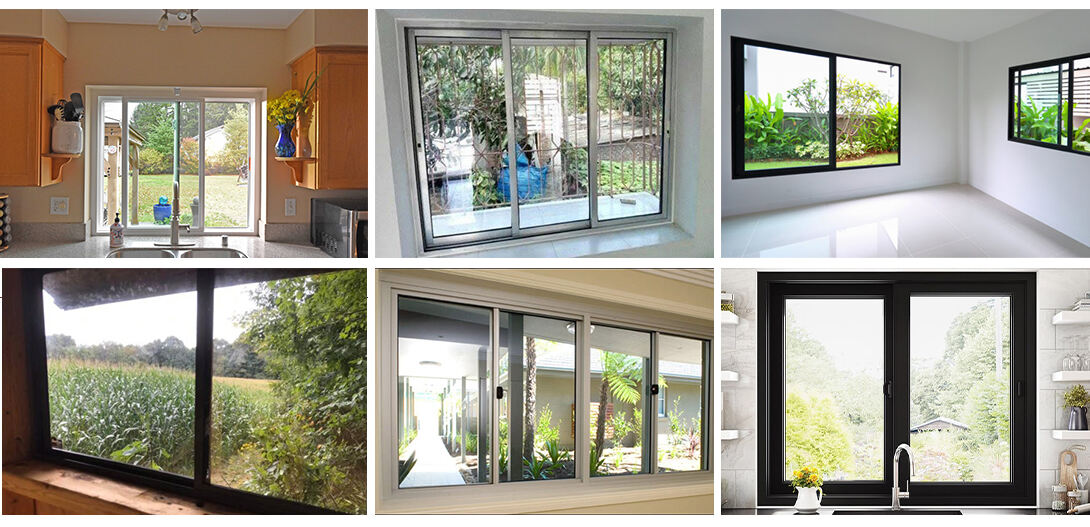

Applications
Sliding windows are very suitable for low floors, schools, factories or places with aisles. Due to translational structural problems, aluminum sliding windows have weaker sealing, sound insulation, heat insulation and thermal insulation effects than casement windows and inward-opening inverted windows, so Its application scenarios are more suitable for environments and areas that do not have high requirements for window sealing and sound insulation, or spaces with small apartment sizes and window areas. It is not recommended for use in low-temperature areas in the north and coastal areas with many typhoons.
Application Cases Reference of Greensee 80mm Series Casement Window
Cases
Advantages
Not occupy indoor space or outdoor, easy to open;
Adopting high-grade sliding rail, it can be opened flexibly with a gentle push;
Good lighting and ventilation performance, the opening area can be up to half of the whole window, better vision;
Simple and beautiful, easy to clean, cost-effective;
Opening and closing in the same plane, stable and safe structure, no need to worry about bumping;
Parallel track sliding opening mode, without too much friction impact, less damaging, the force state of the window sash is good, not easy to damage;
Rigorous sealing treatment, watertightness airtightness is good, not easy to leakage phenomenon;
Factory direct sales, enjoy the most direct and professional factory service, provide free drawing service.
