Greensee Fixed Sliding Up and Down Double Glazing Mesh Screen Aluminum Glassfiber Aluminum Hung Window
-
Model: Hung window
-
Opening Style: Up and down lift open
-
Profile Thickness: 1.4mm
-
Color: Customized
-
Glass: Double glazed
-
Thermal Insulation: 1.6W/m2K
-
Sound Insulation: 35dB
-
Air Tightness: 2.0m3 (m2*h)
-
Wind Tightness: 2.8Kpa
-
Water Tightness: 700Pa
-
Standard: AS2047, NFRC, AAMA, CE, ISO
-
Warranty: 10 years
- Description
- Details
- Parameters
- Applications
- Cases
- Advantages
- Inquiry
Description
Hung window is different from the traditional internal opening, external opening and ordinary sliding mode, but the use of up and down lifting the opening mode of doors and windows, because it is mainly popular in North America, so it is also known as the American lifting window. Hung window is one of the world's two major categories of windows and doors, hung window series of aluminum bridge-cutoff generally used in North America injection type bridge-cut thermal insulation technology, also different from the European wear bar type thermal broken aluminum, tilting hardware has heavy-duty tilting rod type hardware and other series.

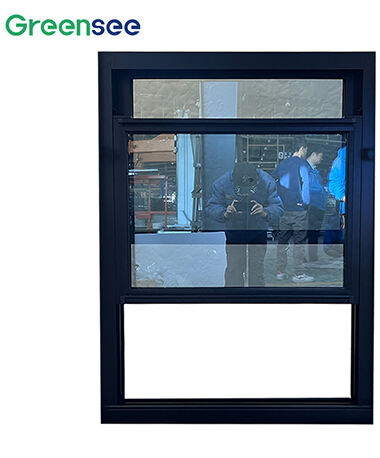

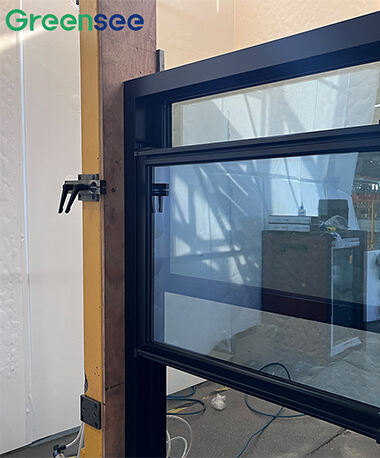

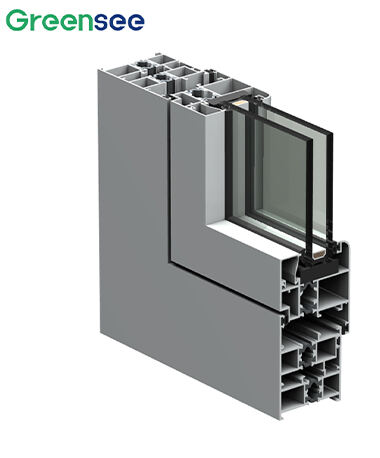

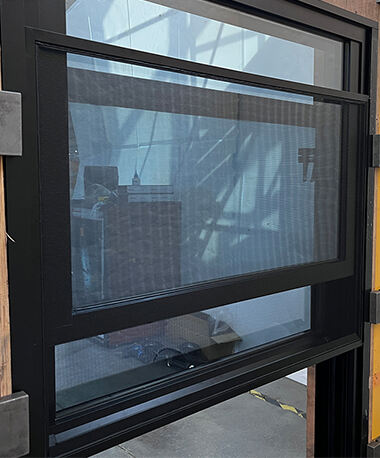

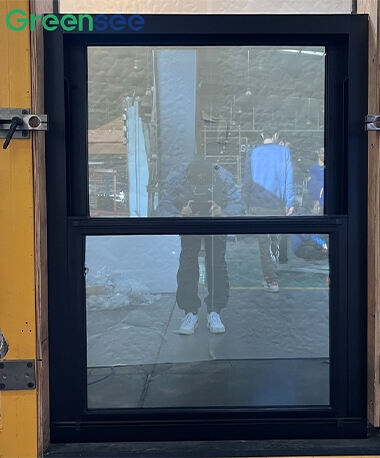

Greensee Aluminum Hung Window Product&Details Show
Details
Parameters
| Profile Thickness: | 1.4mm | Opening Style: | Fixed Sliding Up & Down |
| Color: | Outdoor Deep grey/coffee, Metal grey indoor, or customized | Water Tightness: | 700Pa |
| Glass: | Single: 4mm -12mm,Double Glazing(With 6A/9A/12A/27A space) | Air Tightness: | 2.0m³ (㎡*h) |
| Accessories: | Kin Long locking system | Wind Resistance: | 2.8Kpa |
| Insulation Strip: | Domestic leading brand, Width 14.8mm, 39mm | Sound Insulation: | 35dB |
| Screen: | Integrated Fixed ScreenMaterial: Polyester | Heat Insulation: | 1.6W/㎡K |
| Upgradeable Option： | |||
| System without screen optional. Independent screen optional (48mesh, Dust-free / Insect-free) | |||
| Note: | |||
| 1. Standard integrated screen, sach size ≤ 750*1400mm | |||
| 2. Sash Dimension W: 450-1000, H: 550-1800 | |||
| 3. When selecting glass, pay attention to the fan weight not exceeding 80KG. | |||
Applications
Hung window is very convenient to use, since it can be pulled up or down (can sliding up and down flexible), and can be fixed in any position, so it is very suitable for home or business office. Hung window, we also cancall it Upper and lower sliding windows, can be widely used in high-rise buildings in North America, office buildings, home residential, apartment, villa etc.

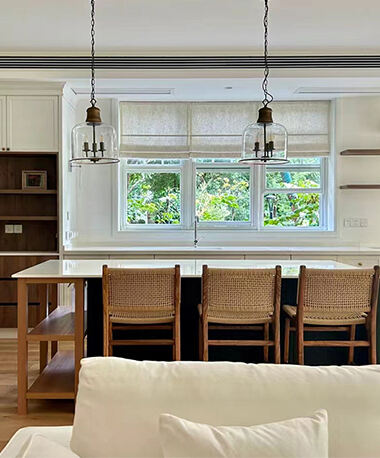

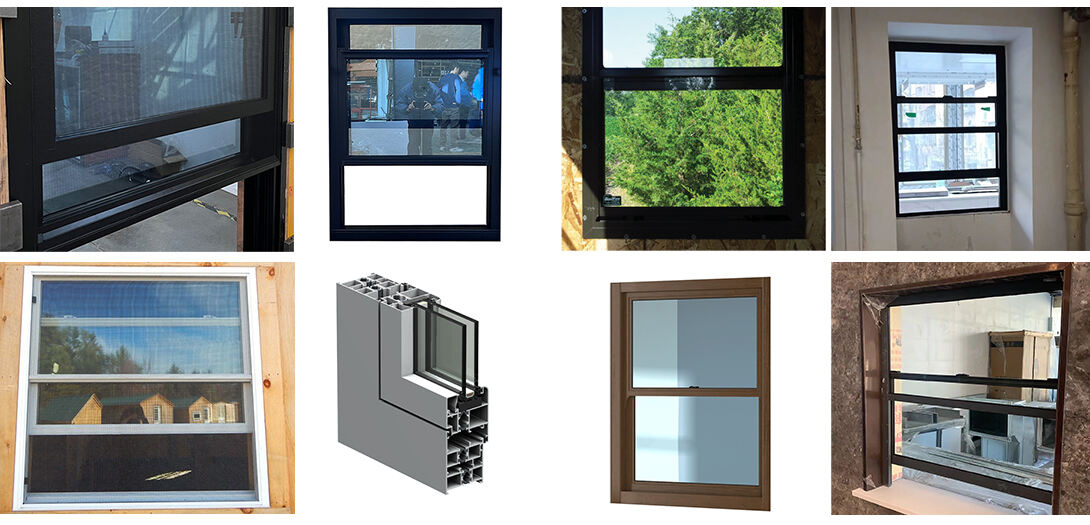

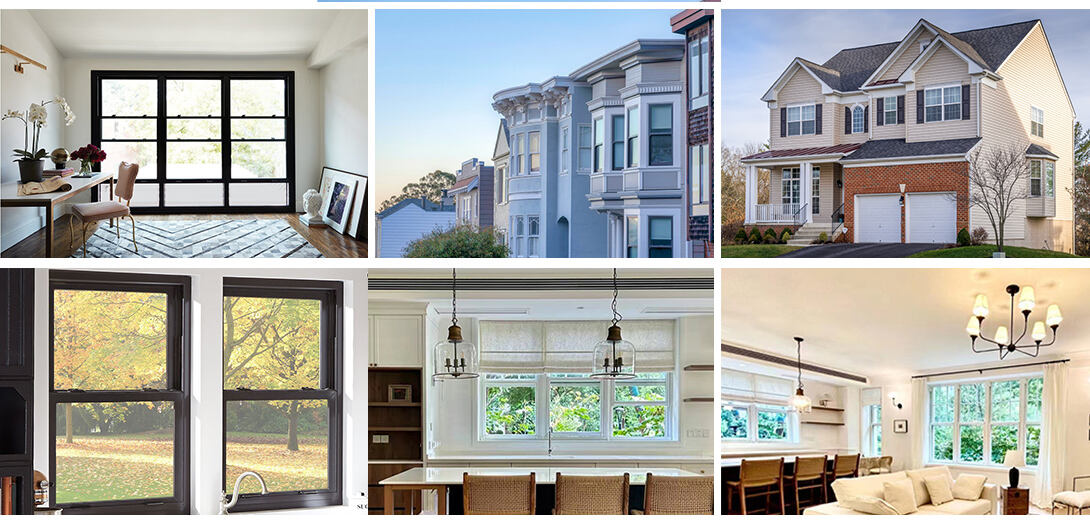

Application Cases Reference of Greensee Aluminum Hung Window
Cases
Advantages
Hung window has superior energy saving and heat preservation, dust and noise reduction and excellent wind pressure performance; beautiful lines, wide view angle; open state does not collide with the human body; frame and fan wrapping, window sash never fall out of the hidden danger, the safety factor is very good and many other advantages.
