Greensee 70 series simple narrow frame aluminum tilt and turn window
-
Model: GA70
-
Opening Style: Fixed, Tilt & Turn
-
Sash+Frame: 70mm
-
Color: Customized
-
Glass: Triple glazed
-
Thermal Insulation: 1.5W/m2K
-
Sound Insulation: 40dB
-
Air Tightness:1.0m3 (m2*h)
-
Wind Tightness: 2.8Kpa
-
Water Tightness: 900Pa
-
Standard: AS2047, NFRC, AAMA, CE, ISO
-
Warranty: 10 years
- Description
- Details
- Parameters
- Applications
- Cases
- Advantages
- Inquiry
Description
Details
Parameters
| Sash+Frame: | 70mm | Opening Style: | Fixed, Tilt & Turn |
| Color: | Outdoor Deep grey/coffee, Metal grey indoor, or customized | Water Tightness: | 900Pa |
| Glass: | 5T+9A+5T+9A+5T Hollow tempered glass | Air Tightness: | 1.0m3 (m2*h) |
| Accessories: | Italian imported handle, SIEGENIA locking system, Imported full concealment hardware parts | Wind Resistance: | 2.8Kpa |
| Insulation Strip: | 34mm PA66-GF25 polyamide insulation strip | Sound Insulation: | Up to level 5, weighted sound insulation (Rw+Ctr) ≥40dB |
| Sealing Strip: | Foam composite EPDM sealing strip (European standard) | Heat Insulation: | 1.5W/m2K |
| Screen: | Integrated inward screen, Material: Polyester | Anti-theft level: | European standard RC2 |
| Upgradeable Option： | |||
| 1.Glass selection refers to the glass configuration table or software system options. | |||
| 2. System without screen optional | |||
| 3.Independent screen optional (48 mesh, dust-free, insect free) | |||
| 4. Glass guardrail optional | |||
| 5. Sobinco Hardware upgradable | |||
| 6. Technoform insulation strip optional | |||
| Note: | |||
| 1.Intergrated screen (standard) Dimension ：≤ 750*1400mm | |||
| 2. Sash dimension: W:450-1000mm H: 550-1800mm | |||
| 3. Glass weight should not exceed 80kg | |||
Applications
The simple and slender frame outline, paired with elegant lines and delicate Italian handles, is extremely suitable for home or office decoration that pursues a simple and modern decoration style. When used for home decoration, it can be used with Fixed windows, Awning windows, etc. in different living areas such as living rooms, balconies, bedrooms, and study rooms. The two modes of flat opening and inward opening allow you to enjoy fresh air when opening flat, and enjoy gentle air circulation when inverting. You can open the window normally even if it rains.

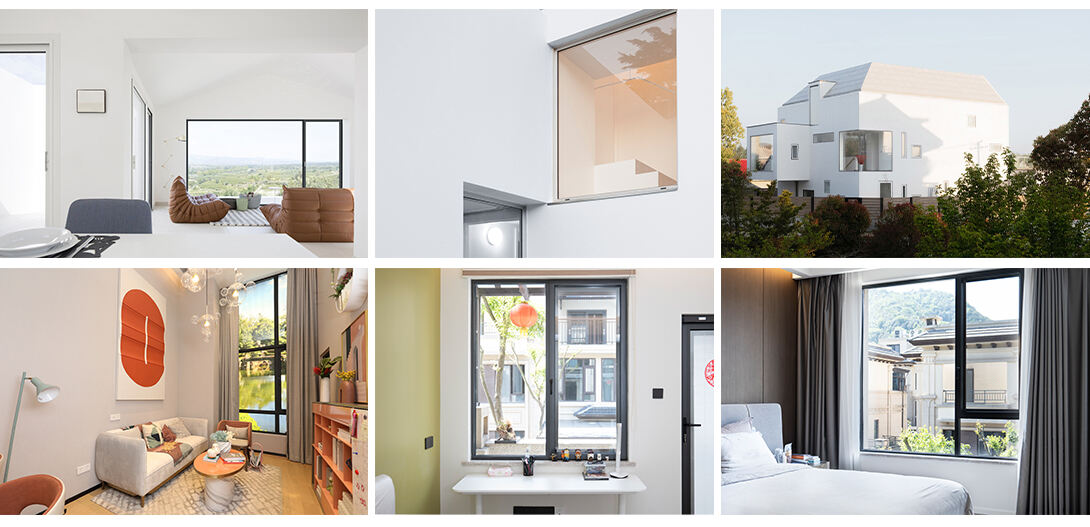

Application Cases Reference of Greensee 70mm Tilt&Turn Window
Cases
Advantages
The appearance lines are simple and slender, elegant and smooth. While it has all the functions of the Tilt and Turn window, the GA-70 narrow frame tilt and turn window has a larger viewing area when opening inward and turning inward. Other features are as follows;
Inward opening method completely eliminates the risk of the fan falling and is also easy to clean;
When tilted inward, can achieve indoor circulation ventilation and gentle temperature regulation;
The lower frame drainage system can effectively prevent rainwater from flowing into the room;
The window sash can be fully opened to increase the lighting area and allow more natural light into the room;
Open windows for ventilation even on rainy days;
When opened upside down, the anti-misoperation device works and the handle is locked, so there is no need to worry about accidents even if the children at home are climbing;
Excellent anti-theft ability, you don’t have to worry about strangers entering through the window when you are out.
