75S2, 75P Greensee High-End Triple Glazed LOW-E Aluminum Frame Tilt and Turn Window
-
Model: GA75S2
-
Opening Style: Fixed, Tilt & Turn
-
Profile Thickness: 1.8mm
-
Color: Customized
-
Glass: Triple glazed
-
Thermal Insulation: 1.3W/m2K
-
Sound Insulation: 40dB
-
Air Tightness: 1.0m3 (m2*h)
-
Wind Tightness: 3.8Kpa
-
Water Tightness: 900Pa
-
Standard: AS2047, NFRC, AAMA, CE, ISO
-
Warranty: 10 years
- Description
- Details
- Parameters
- Applications
- Cases
- Advantages
- Inquiry
Description
Details
Parameters

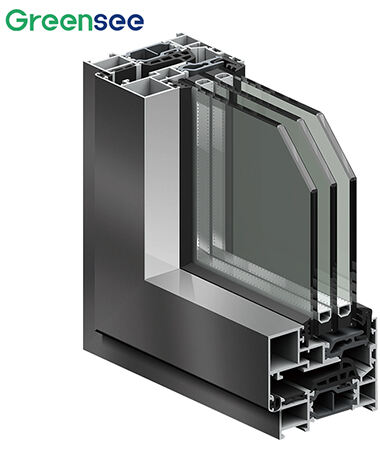

| Profile Thickness: | 1.8mm | Opening Style: | Fixed, Tilt & Turn |
| Color: | Outdoor Deep grey/coffee, Metal grey indoor, or customized | Water Tightness: | 900Pa |
| Glass: | 5mm+12A+5mm+12A+5mm Hollow tempered glass | Air Tightness: | 1.0m3 (m2*h) |
| Accessories: | Italian imported handle, SIEGENIA locking system | Wind Resistance: | 3.8Kpa |
| Insulation Strip: | Domestic leading brand, Width 34mm | Sound Insulation: | 40dB |
| Screen: | Integrated inward screen, Material: Polyester | Heat Insulation: | 1.3W/m2K |
| Upgradeable Option： | |||
| 1.Glass selection refers to the glass configuration table or software system options. | |||
| 2. System without screen optional | |||
| 3.Independent screen optional (48 mesh, dust-free, insect free) | |||
| 4. Glass guardrail optional | |||
| 5. Sobinco Hardware upgradable | |||
| 6. Technoform insulation strip optional | |||
| Note: | |||
| 1.Intergrated screen (standard) Dimension ：≤ 750*1400mm | |||
| 2. Sash dimension: W:450-1000mm H: 550-1800mm | |||
| 3. Glass weight should not exceed 80kg | |||
Applications

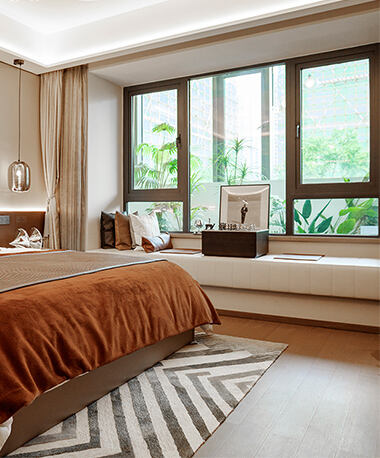

Suitable for all occasions, high-end homes, quality homes, office buildings, commercial buildings, high-end hotels, villa decoration, etc. Tilt and turn swing casement windows are generally used with other window types, such as fixed windows with a large view, you can enjoy the fresh air when the window opens flat (inward swing) and the good ventilation when the window is inverted, while Enjoy the large and open view. Use our 75S or 75P tilt and turn window in cold areas or very hot areas to naturally insulate individuals, effectively reduce energy consumption, to create a more comfortable home life.

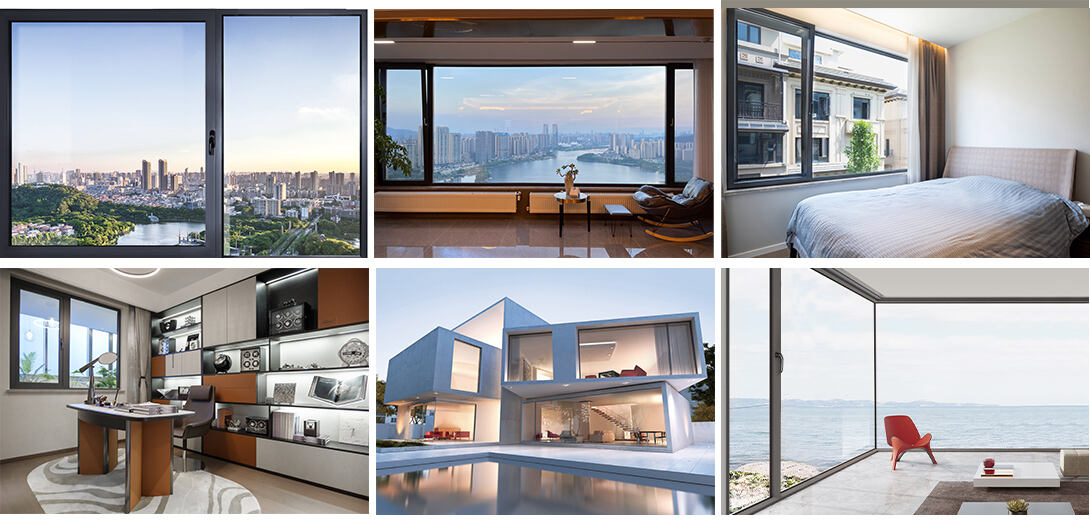

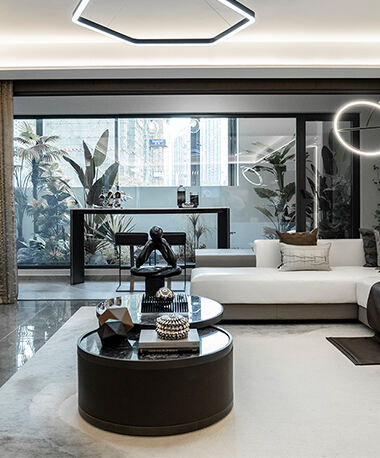

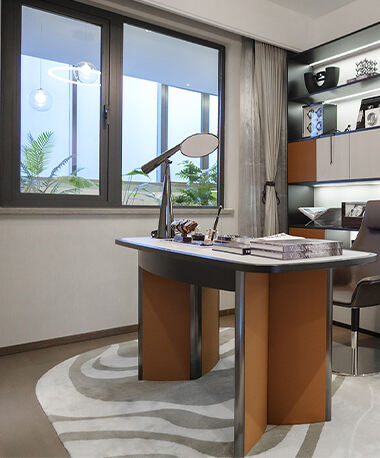

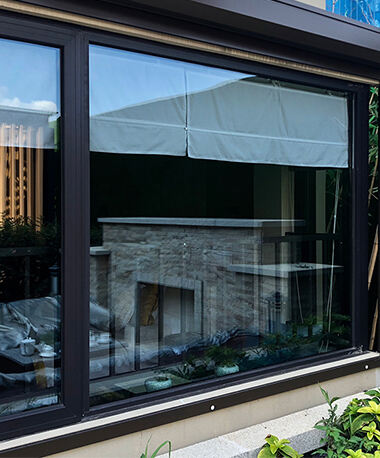

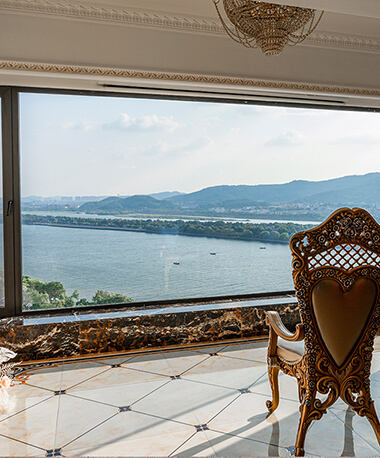

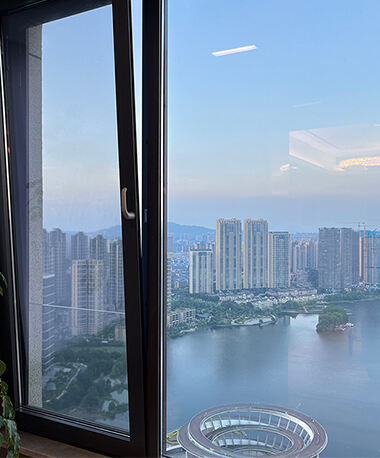

Application Cases Reference of Greensee 75mm Tilt&Turn Window
Cases
Advantages
Three-layer vacuum tempered LOW-E glass has stronger thermal insulation performance, better windproof and noise reduction effect, effectively reduces the energy efficiency of the house and creates a green home;
Inward opening method completely eliminates the risk of the fan falling and is also easy to clean;

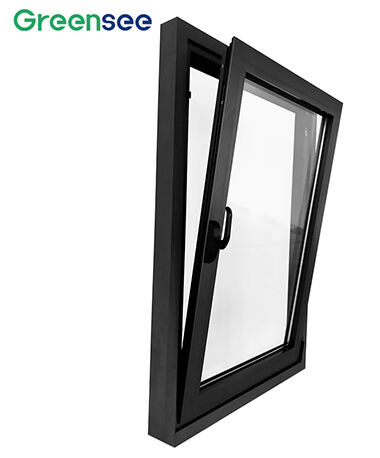

When tilted inward, can achieve indoor circulation ventilation and gentle temperature regulation;
The lower frame drainage system can effectively prevent rainwater from flowing into the room;

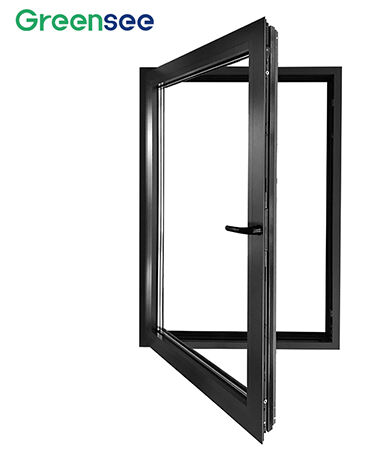

The window sash can be fully opened to increase the lighting area and allow more natural light into the room;
Open windows for ventilation even on rainy days;
When it falls inside, the anti-misoperation device comes into play and the handle is locked, so there is no need to worry about accidents when children at home climb;
Excellent anti-theft ability, you don’t have to worry about strangers entering through the window when you are out.
