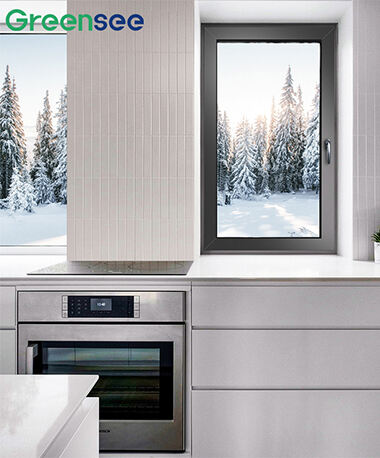

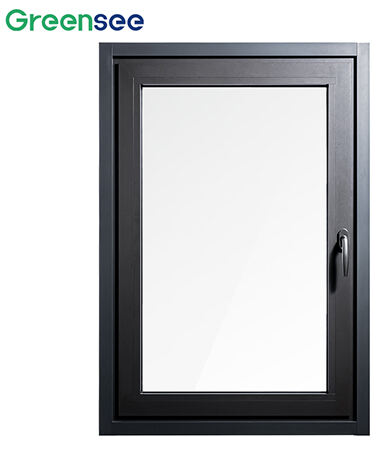

65S Greensee Double Glazed LOW-E Tilt and Turn window Aluminum thickness 1.8mm

  • Model:GA65S2

  • Opening Style:Fixed, Tilt & Turn

  • Profile Thickness:1.8mm

  • Color:Customized

  • Glass:Double glazed

  • Thermal Insulation:1.8W/m2K

  • Sound Insulation:35dB

  • Air Tightness: 2.0m3 (m2*h)

  • Wind Tightness: 3.5Kpa

  • Water Tightness:900Pa

  • Standard:AS2047, NFRC, AAMA, CE, ISO

  • Warranty:10 years



  • Description
  • Details
  • Parameters
  • Applications
  • Cases
  • Advantages
  • Inquiry
Description

Tilt turn casement window is a kind of aluminium window system which can be opened vertically to the interior and also can be hung inward for ventilation, which is more and more widely used in the market nowadays (two kinds of opening methods, the interior is opened flat and the window is inverted, i.e. the upper part of the window is tilted to the interior). Greensee tilt turn windows have been carefully considered in the selection of materials and design, and have passed the European Union CE certification with ultra-high standards of wind pressure resistance, watertightness, airtightness, acoustic performance and thermal insulation performance.

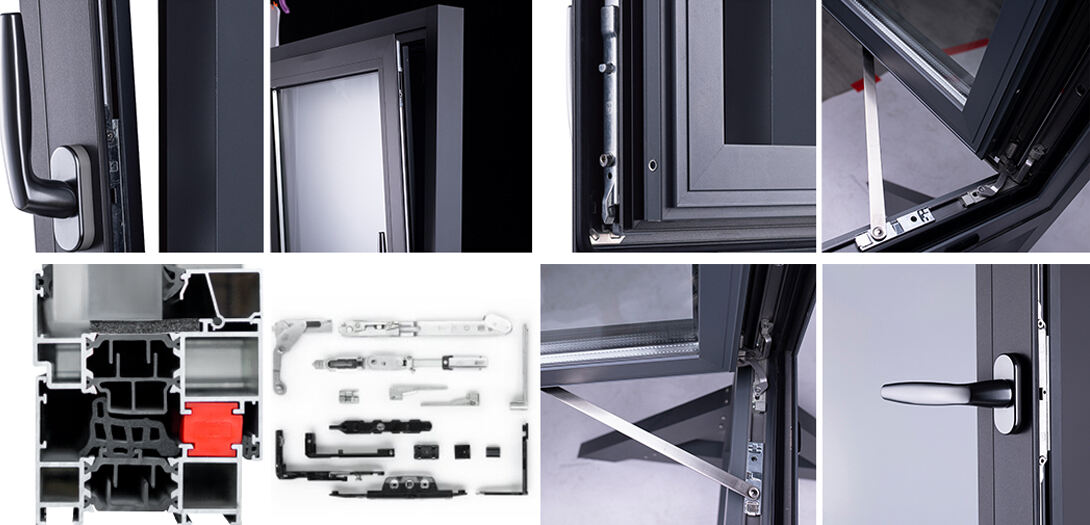

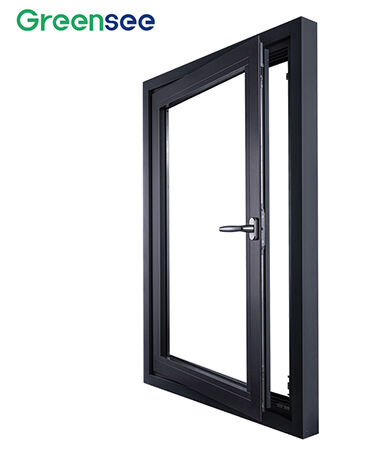

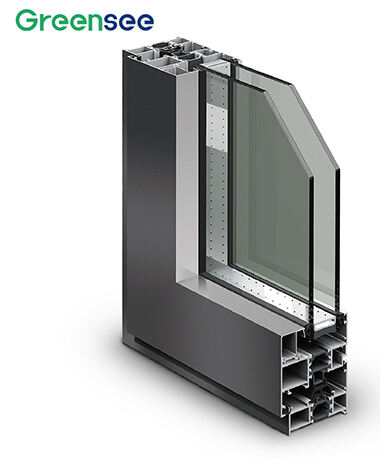

Greensee 65mm Tilt&Turn Window Product&Details Show

65S Greensee Double Glazed LOW-E Tilt and Turn window Aluminum thickness 1.8mm factory

Details
Parameters
Profile Thickness: 1.8mm Opening Style: Fixed, Tilt & Turn
Color: Outdoor Deep grey/coffee, Metal grey indoor, or customized Water Tightness: 900Pa
Glass: 5mm+16A+5mm Hollow tempered glass Air Tightness: 1.5m3 (m2*h)
Accessories: Italian imported handle, SIEGENIA locking system Wind Resistance: 3.5Kpa
Insulation Strip: Domestic leading brand, Width 24mm Sound Insulation: 35dB
Screen: Integrated inward screen, Material: Polyester Heat Insulation: 1.8W/m2K
Upgradeable Option:
1.Glass selection refers to the glass configuration table or software system options.
2. System without screen optional
3.Independent screen optional (48 mesh, dust-free, insect free)
4. Glass guardrail optional
5. Sobinco Hardware upgradable
6. Technoform insulation strip optional
Note:
1.Intergrated screen (standard) Dimension :≤ 750*1400mm
2. Sash dimension: W:450-1000mm H: 550-1800mm
3. Glass weight should not exceed 80kg

Applications

Tilt and Turn Aluminum Window are widely used in various engineering projects and home decoration projects. Its application scenarios include home decoration, office decoration, hotel decoration, luxury villa decoration, etc. Tilt and turn swing casement windows can be matched with different window types. Our designers can tailor-make a suitable window type for you, which can not only improve the grade and aesthetics of your house but also maintaining excellent ventilation performance. 65S2 aluminum frame tilt and turn window is widely used in countries that are not very cold, and it is also a very cost-effective window based on our top configuration and high-end workmanship.

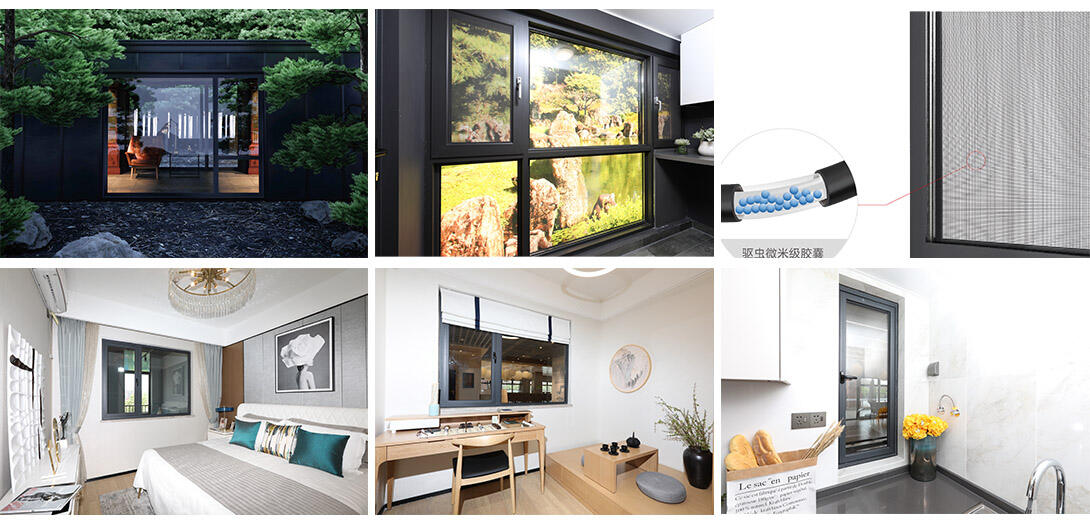

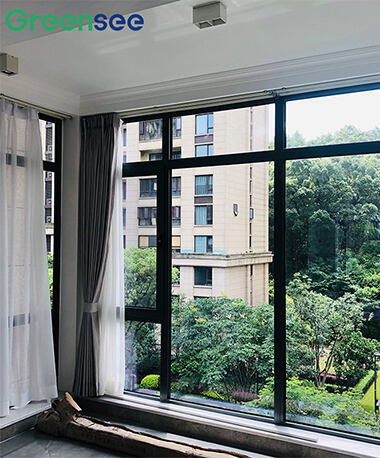

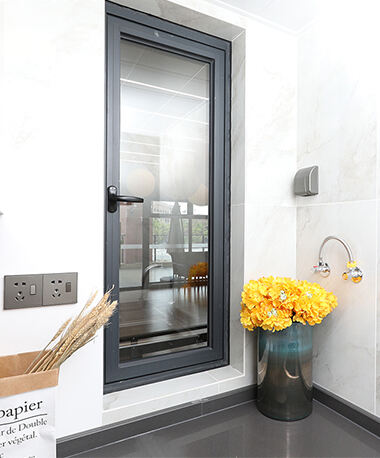

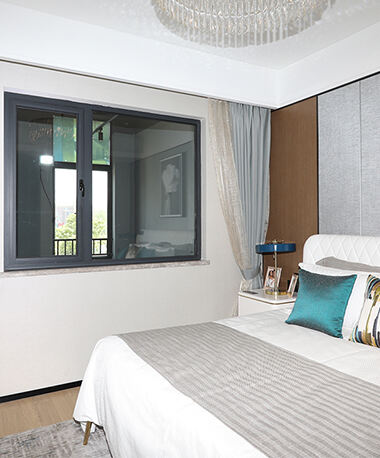

Application Cases Reference of Greensee 65mm Tilt&Turn Window

Cases
Advantages
  1. Inward opening eliminates the risk of the fan falling and is easy to clean;

  2. When tilted inward, it allows for circulating indoor ventilation and gentle temperature regulation;

  3. Under-frame drainage system effectively prevents rainwater from flowing into the room;

  4. Window sashes can be fully opened to increase the light area and allow more natural light to enter the room;

  5. The windows should be opened for ventilation even on rainy days;

  6. When falling into the interior, the anti-misoperation device comes into play, the handle is locked, and children at home do not have to worry about accidents even if they climb;

  7. Excellent anti-theft ability, no need to worry about strangers entering through the window when going out.
