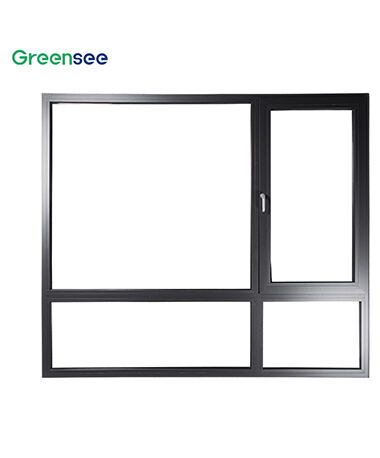

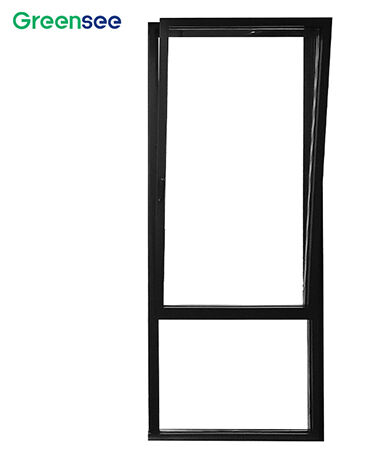

55 series Aluminum Tilt and Turn window with double glazed tempered glass
-
Model:GA65S
-
Opening Style:Fixed, Tilt & Turn
-
Profile Thickness:1.4mm
-
Glass:Double glazed
-
Thermal Insulation:2.0W/m2K
-
Sound Insulation:35dB
-
Air Tightness:2.0m3 (m2*h)
-
Wind Tightness:2.8Kpa
-
Water Tightness:700Pa
-
Standard:AS2047, NFRC, AAMA, CE, ISO
- Description
- Details
- Parameters
- Applications
- Cases
- Advantages
- Inquiry
Description
Details
Parameters

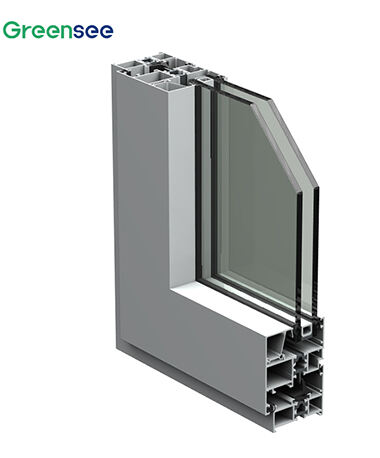

| Profile Thickness: | 1.4mm | Opening Style: | Fixed, Tilt & Turn |
| Color: | Outdoor Deep grey/coffee, Metal grey indoor, or customized | Water Tightness: | 700Pa |
| Glass: | 5mm+15A+5mm Hollow tempered glass | Air Tightness: | 2.0m3 (m2*h) |
| Accessories: | Italian imported handle, SIEGENIA locking system | Wind Resistance: | 2.8Kpa |
| Insulation Strip: | Domestic leading brand, Width 14.8mm | Sound Insulation: | 35dB |
| Screen: | Independent/Integrated inward screen, Material: Polyester | Heat Insulation: | 2.0W/m2K |
| Upgradeable Option： | |||
| 1.Glass selection refers to the glass configuration table or software system options. | |||
| 2. System without screen optional | |||
| 3.Independent screen optional (48 mesh, dust-free, insect free) | |||
| 4. Glass guardrail optional | |||
| 5. Sobinco Hardware upgradable | |||
| Note: | |||
| 1.Indepent screen (standard) | |||
| 2. Sash dimension: W:450-1000mm H: 550-1800mm | |||
| 3. Glass weight should not exceed 80kg | |||
Applications
Tilt and Turn Aluminum Window are widely used in various engineering projects and home decoration projects. When used with the big screen fixed window, you can enjoy the fresh air when the window opens flat (inward swing) and the good ventilation when the window is inverted, while enjoying the large and open view. Meanwhile, it can also be used with awning windows. Tilt and Turn window is suitable for any rooms in the home decoration, such as bedroom, tea room, study room and bathroom, to create a better living environment.

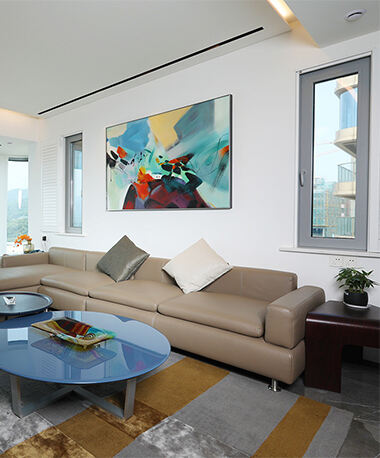

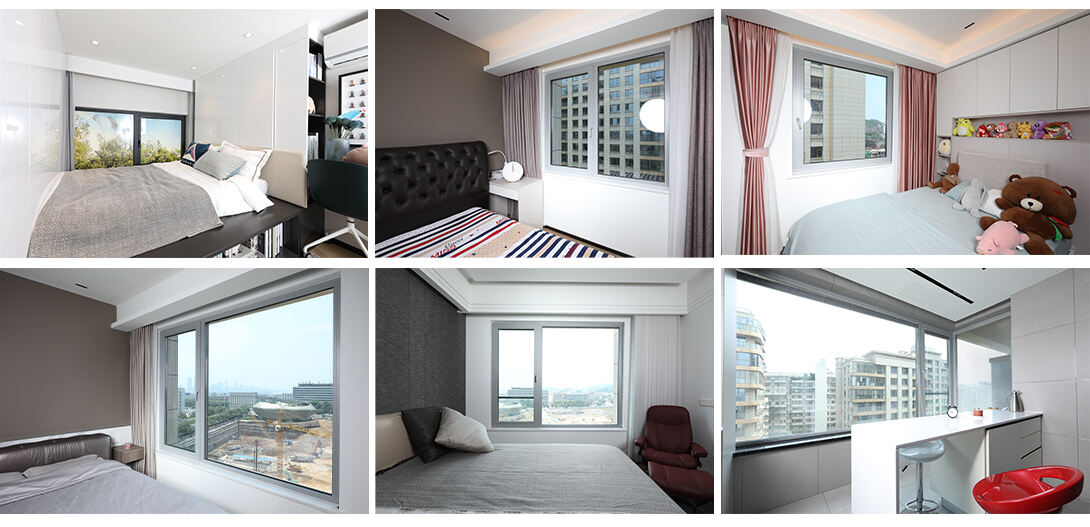

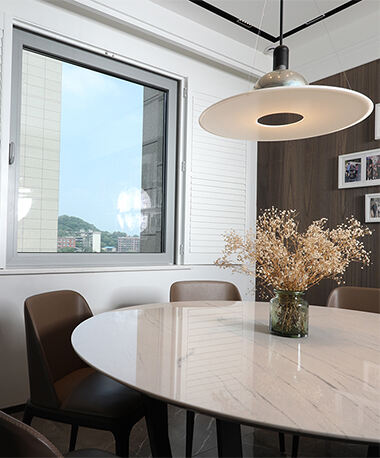

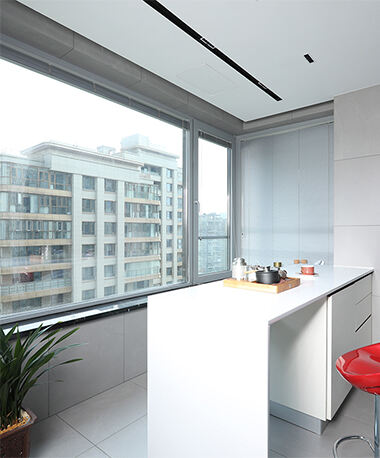

Application Cases Reference of Greensee 55mm Tilt&Turn Window
Cases
Advantages
1.Unless there are special circumstances, the 55 series tilt and turn window should be the lowest priced among our several tilt and turn windows, but its performance is much higher than the same kind tilt and turn window on the market;
2.Inward open can eliminate the risk of the fan falling and is also easy to clean;

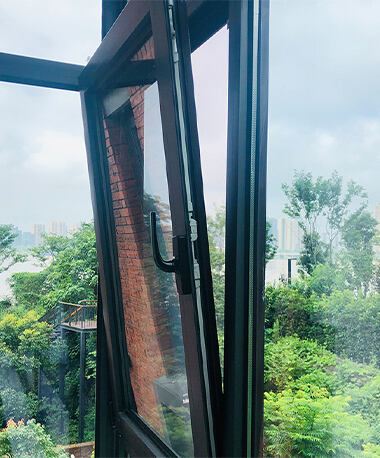

3.When tilted inward, indoor circulation ventilation and gentle temperature regulation can be achieved;
4.The under-frame drainage system effectively prevents rainwater from flowing into the interior;
5.The window sash can be fully opened to increase the lighting area and allow more natural light into the room;
6.Open windows for ventilation even on rainy days;
7.When it falls inside, the anti-misoperation device comes into play and the handle is locked, so there is no need to worry about accidents when children at home climb;
8.Excellent anti-theft ability, you don’t have to worry about strangers entering through the window when you are out.
